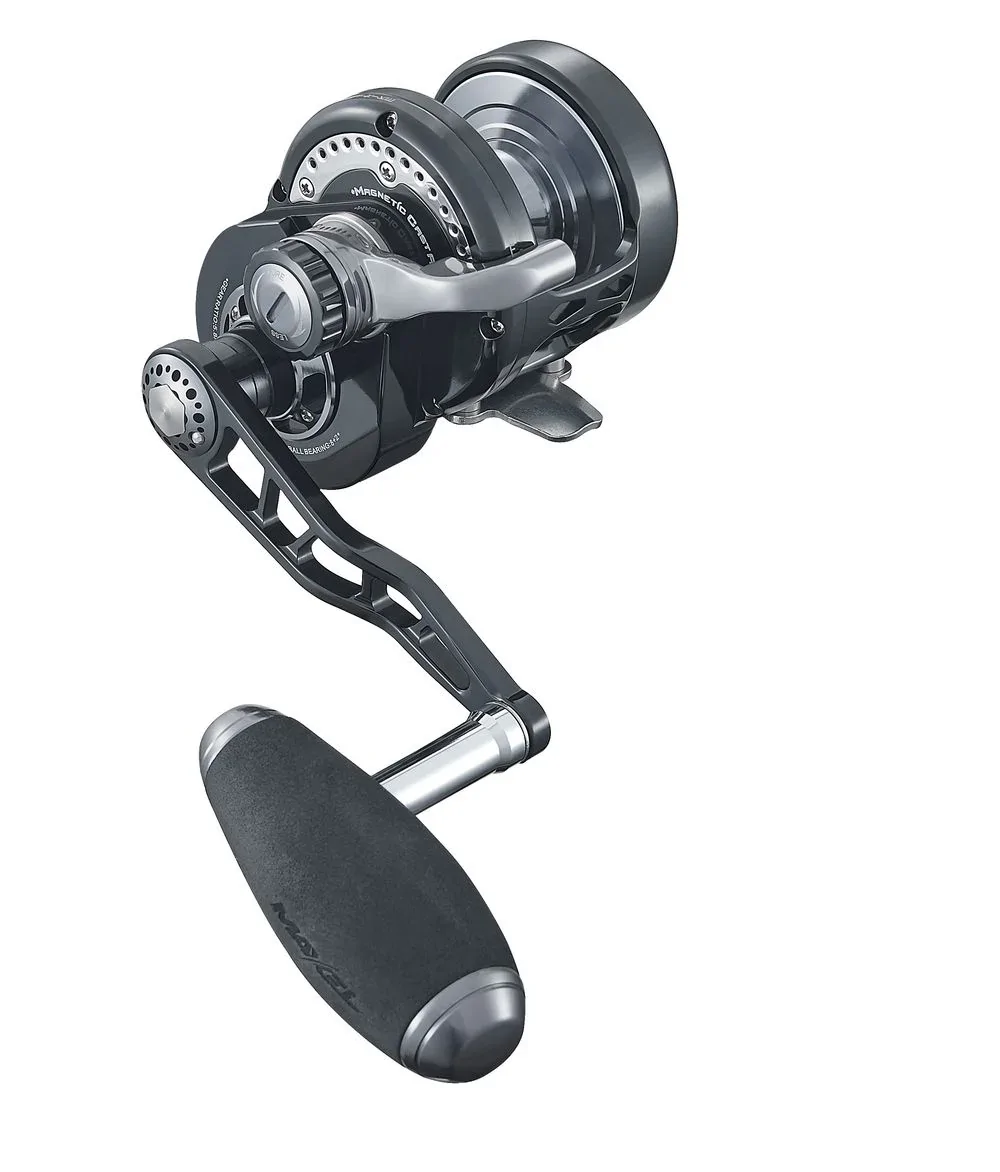

Transformer Series High Speed Ratio Reel VIEW DETAILS

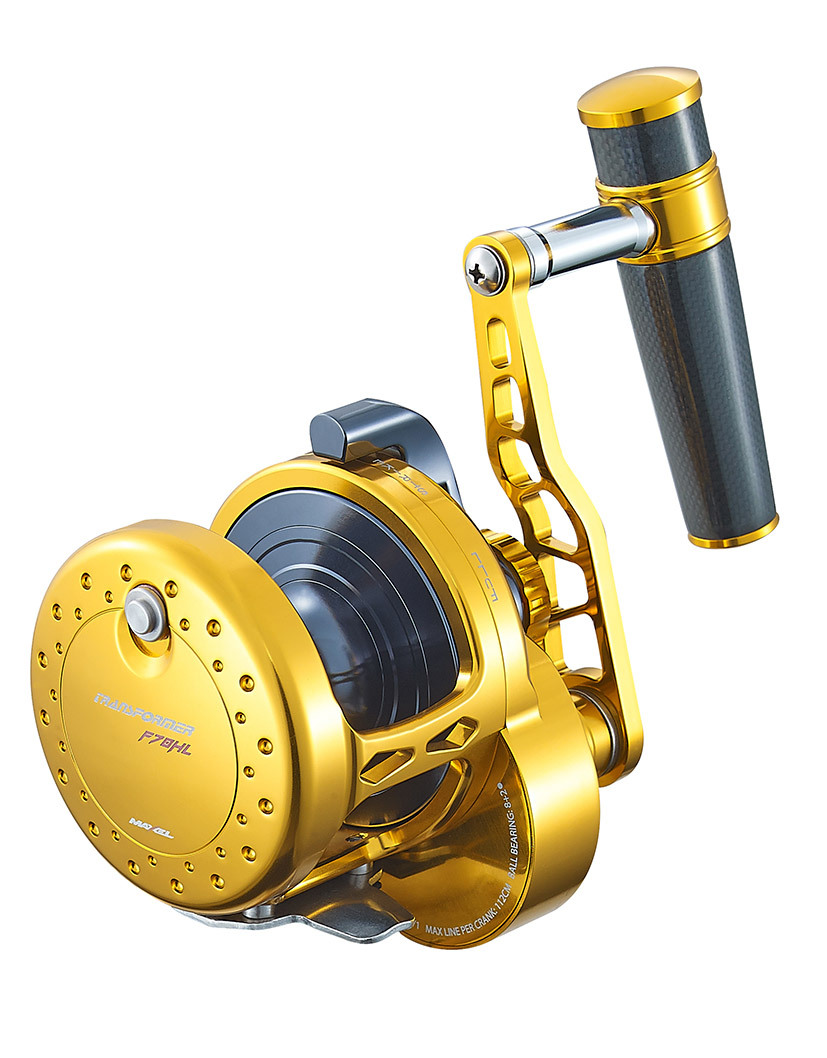

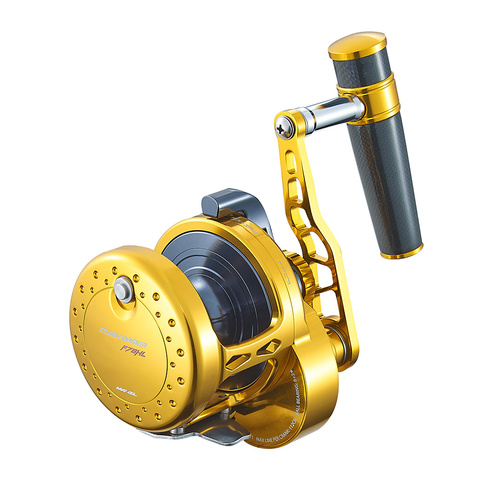

F70HL

MSRP
$689.00

Maxel makes its 10th anniversary of reel manufacture in 2013 with the introduction of its Transformer series of jigging reels , a range that quickly became a jewel in the company’s crown .

Now the popular series has been upgraded with a lighter 2018 version that delivers an improved level of performance .The advantage go beyond design tweaks and make a discernible difference to the reel’s handling and performance

The New Transformer Modifications:

- The side plate is now machined in an arc shape to provide more comfortable grip

- The  modified EVA oval knobs are lighter weight and more user-friendly

- The newly-designed handle shaft has an additional bearing to provide more and smoother cranking power . The shaft coating has also been upgraded from brass to aluminum.

- For the bigger models F60H(L) ,F70H(L) ,The side plate holding the gear box is thinner and lighter ,but still retain its  rigidity.

View More
Product Info Badge
Machined rigid frame
Product Info Badge
Cold forged spool & side plates
Product Info Badge
Heavy Duty and precision gears
Product Info Badge
Carbon drag system
Product Info Badge
Anti-corrosion stainless steel bearings
Product Info Badge
Magnetic cast assist

Features

  • Lever controlled dual drag

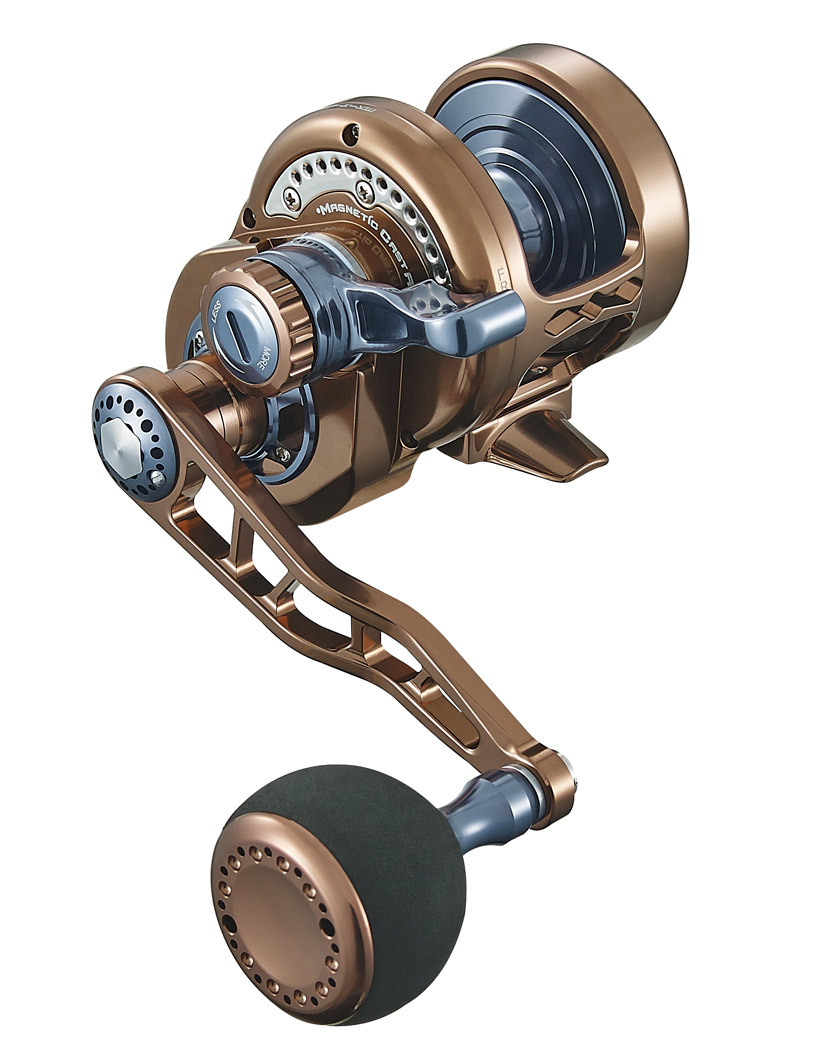

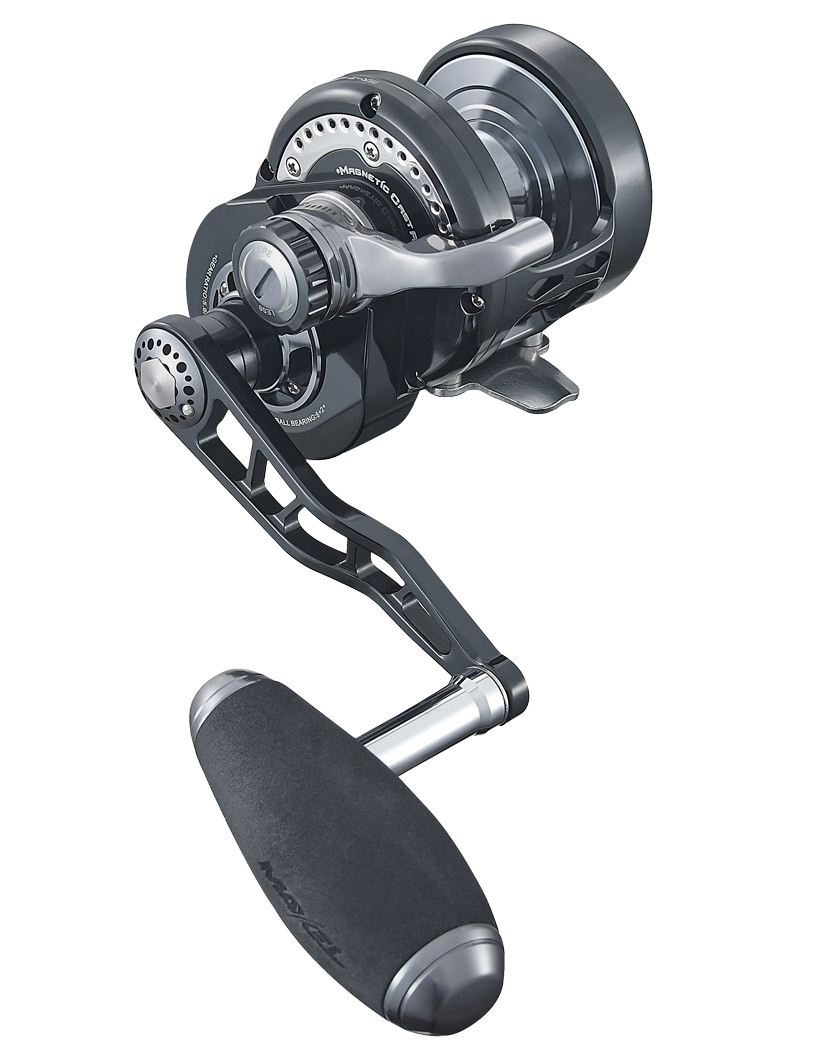

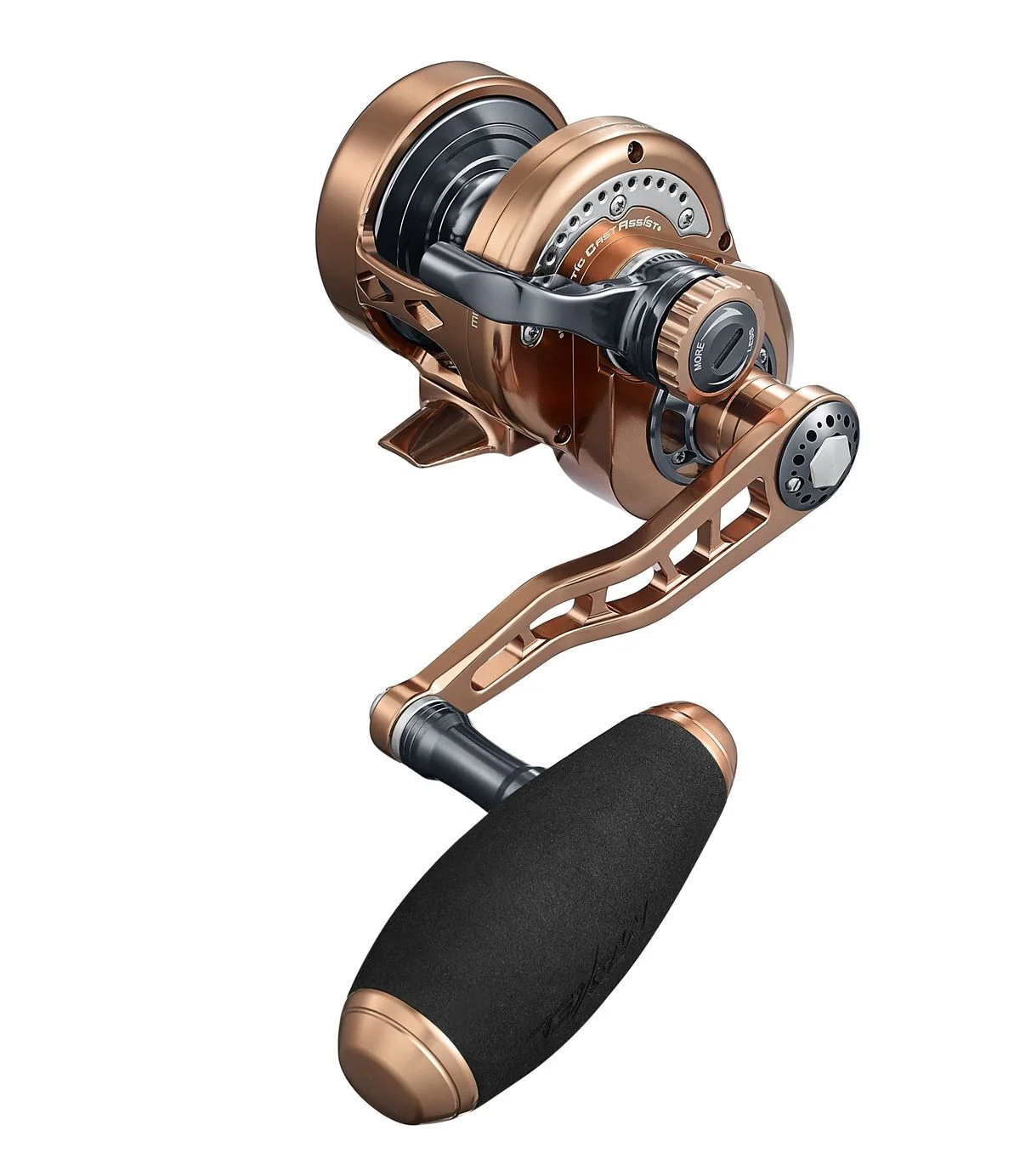

  • Magnetic cast assist control for improved casting performance( for size 30/40/50 only)
  • Precision machined ,rigid ,one piece tempered aluminium frame
  • Super strong ,cold forged aluminium spool and side plates
  • Smooth ,high precision ,heat treated stainless steel helical cut gears
  • Super precise ,oversized ,shielded stainless steel ball bearings
  • Carbon dual drag delivered wide range ,smooth performance even when wet
  • Recessed stainless steel seat sits lower on rod
  • All models are silent line retrieve operation

Specifications

Model MSRP SCHEMATICS Ball BearingsGear RatioLine Capacity (m)Strike Drag (kg)Full Drag (kg)Reel Weight ( G )Line Retrieve per crank(cm)Handle Total Length (mm)Reel SizeColorHandle
F30CH US$579.00 Product Humanic Download 9+2Black/Light Gray206.2:1Right Handed108.50PE2/400963044610
F30CHL US$579.00 Product Humanic Download 9+2Black/Light Gray206.2:1Left Handed108.50PE2/400963044610
F40CH US$589.00 Product Humanic Download 9+2Black/Light Gray225.8:1Right Handed108.50PE3/400984053311
F40CHL US$589.00 Product Humanic Download 9+2Black/Light Gray225.8:1Left Handed108.50PE3/400984053311
F50CH US$609.00 Product Humanic Download 9+2Black/Light Gray225.8:1Right Handed108.50PE4/400985054611
F50CHL US$609.00 Product Humanic Download 9+2Black/Light Gray225.8:1Left Handed108.50PE4/400985054611
F60H US$629.00 Product Humanic Download 9+2Black/Light Gray245.3:1Right Handed113.50PE5/400976059012
F60HL US$629.00 Product Humanic Download 9+2Black/Light Gray245.3:1Left Handed113.50PE5/400976059012
F70H US$689.00 Product Humanic Download 9+2Black/Light Gray305.3:1Right Handed113.50PE6/4001127067516
F70HL US$689.00 Product Humanic Download 9+2Black/Light Gray305.3:1Left Handed113.50PE6/4001127067516
