Oceanic Trolling Series

MAXEL OCEANIC SERIES - TWO SPEED TROLLING REELS

Well known around the world for precision engineering, top quality materials and high performance designs, MAXEL is introducing the new family of OCEANIC Two Speed Big Game Trolling Reels to help assure big game trophies make it all the way to the boat.

Crafted of premium, aircraft quality, bar stock aluminum and precision machined for the greatest strength, tightest tolerances and lightest weight, these reels are ready to handle the heaviest loading from the biggest gamefish. The rigid, monolithic, one-piece reel frame is built to handle all the heavy loads generated by strong lines, powerful drags and big fish.

The simple, quick-shift two speed gearing delivers the best retrieve for line eating speed and for fish fighting power. The wide range, powerful and super smooth carbon fiber drag systems assure excellent control from hook up to boat side.

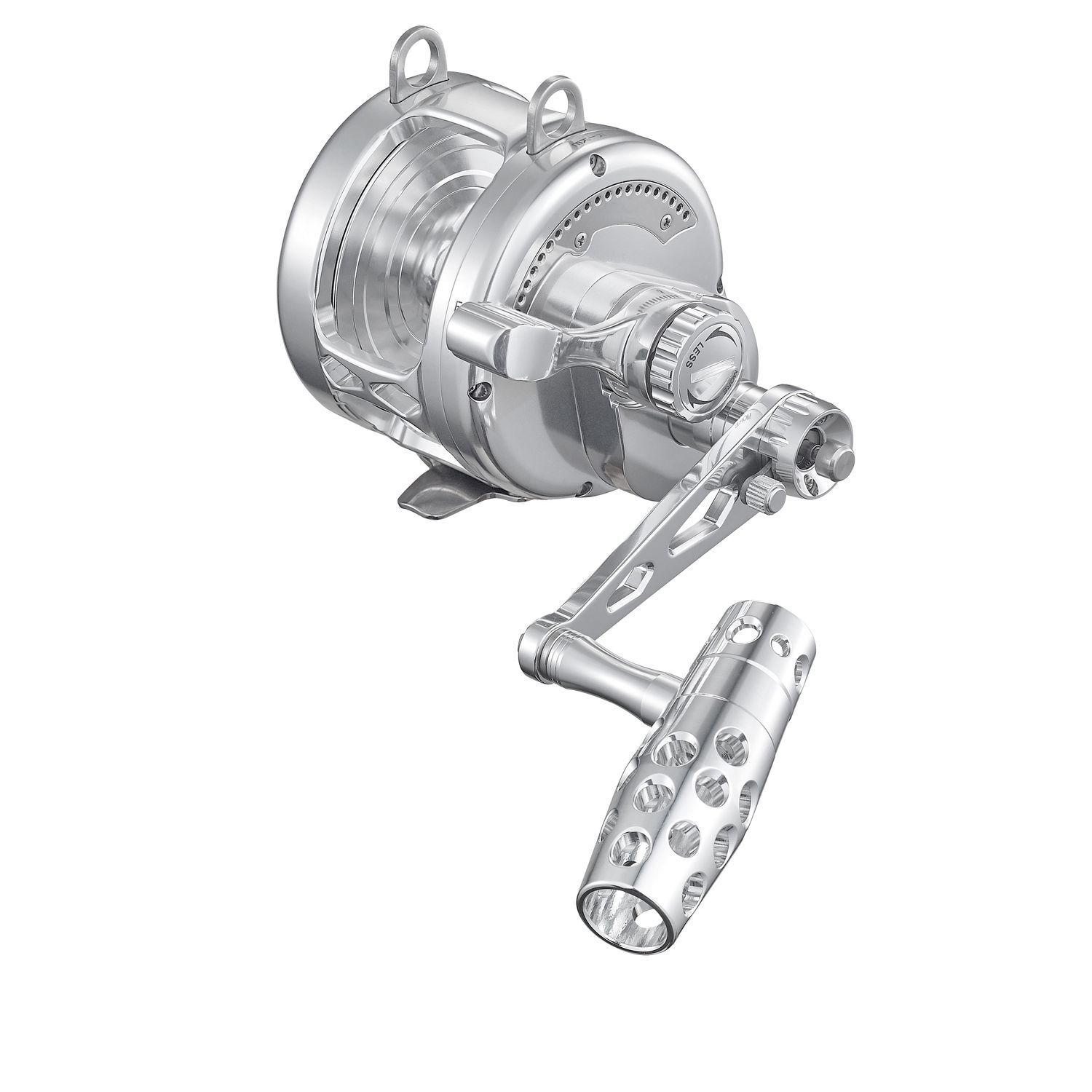

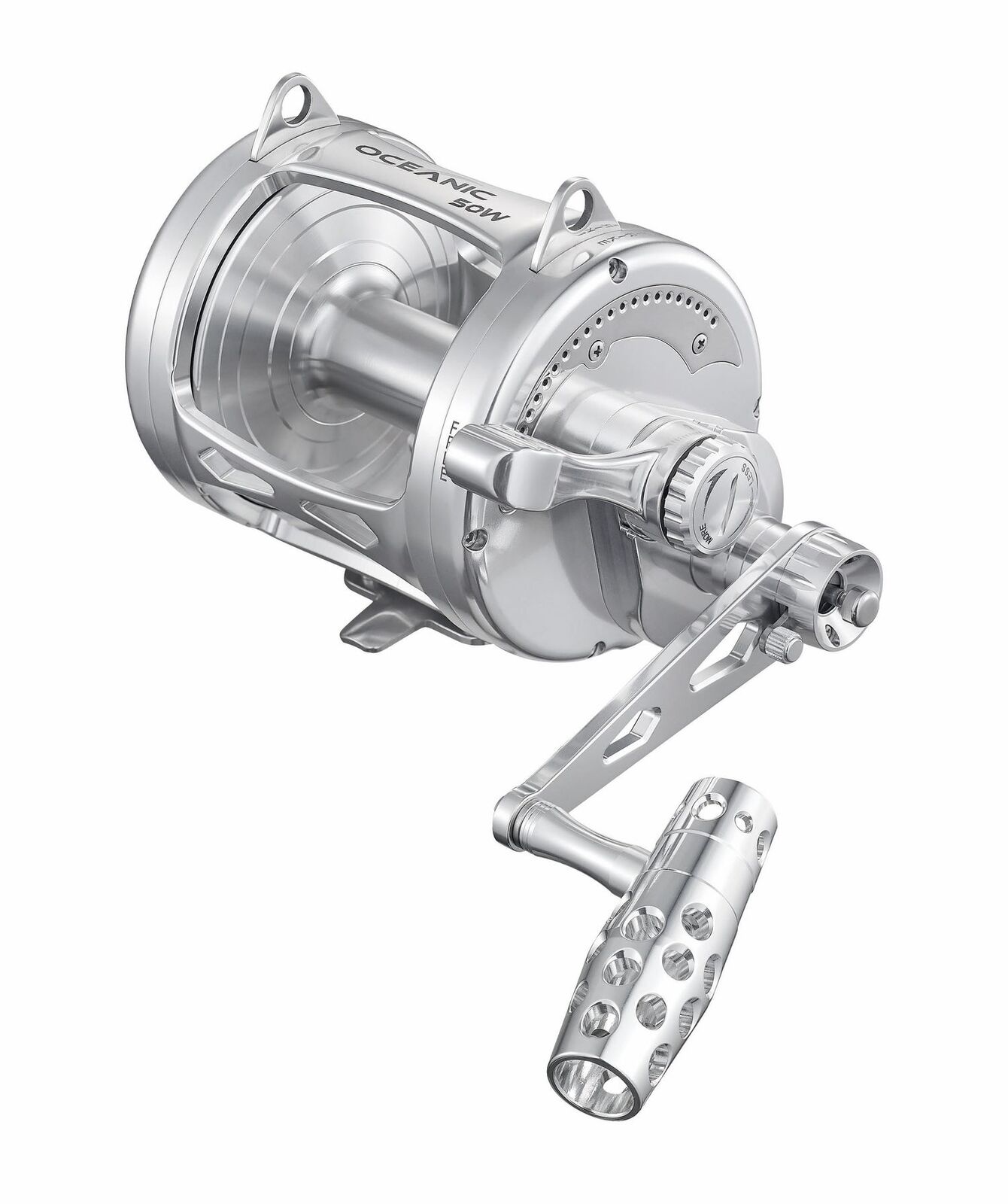

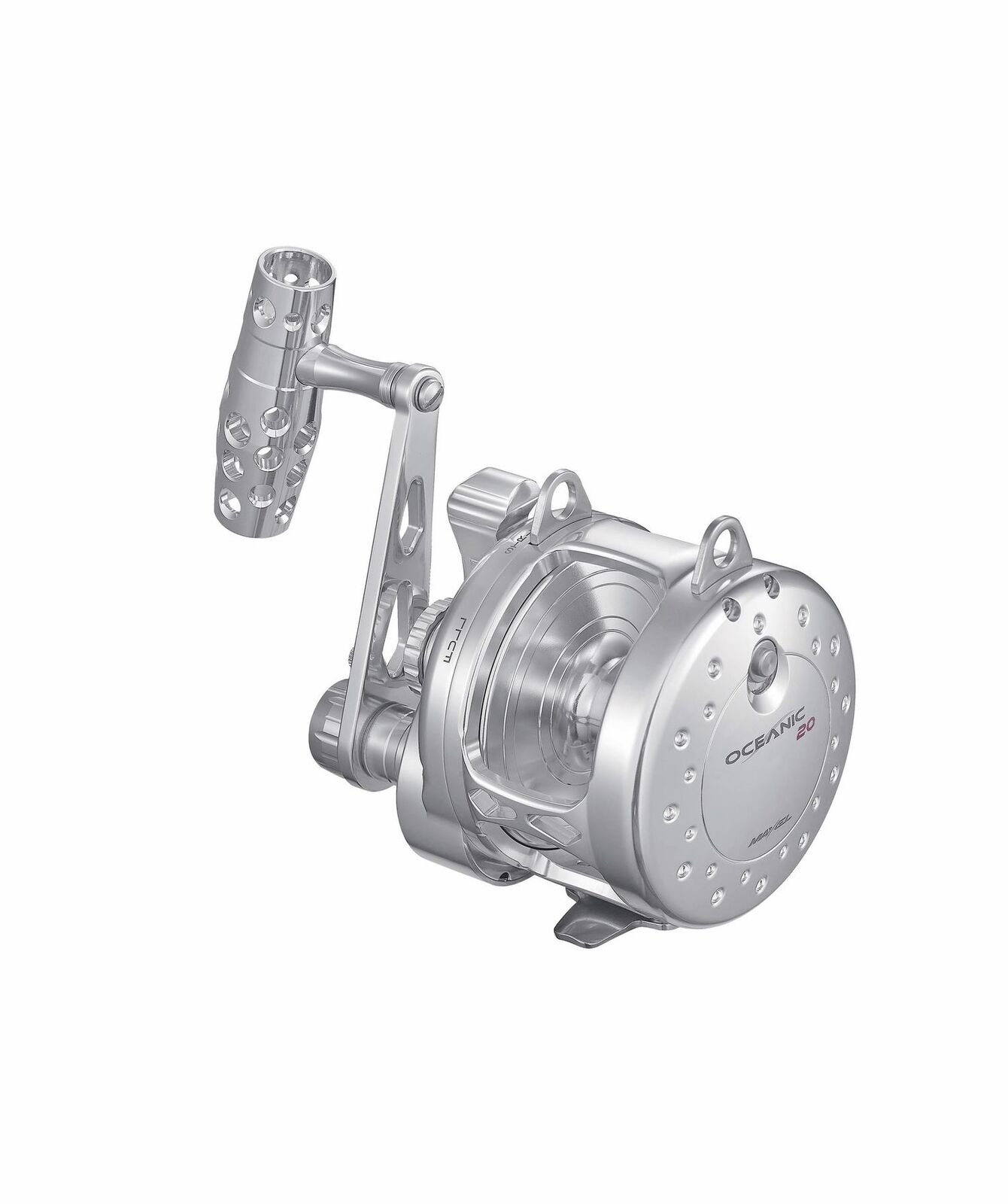

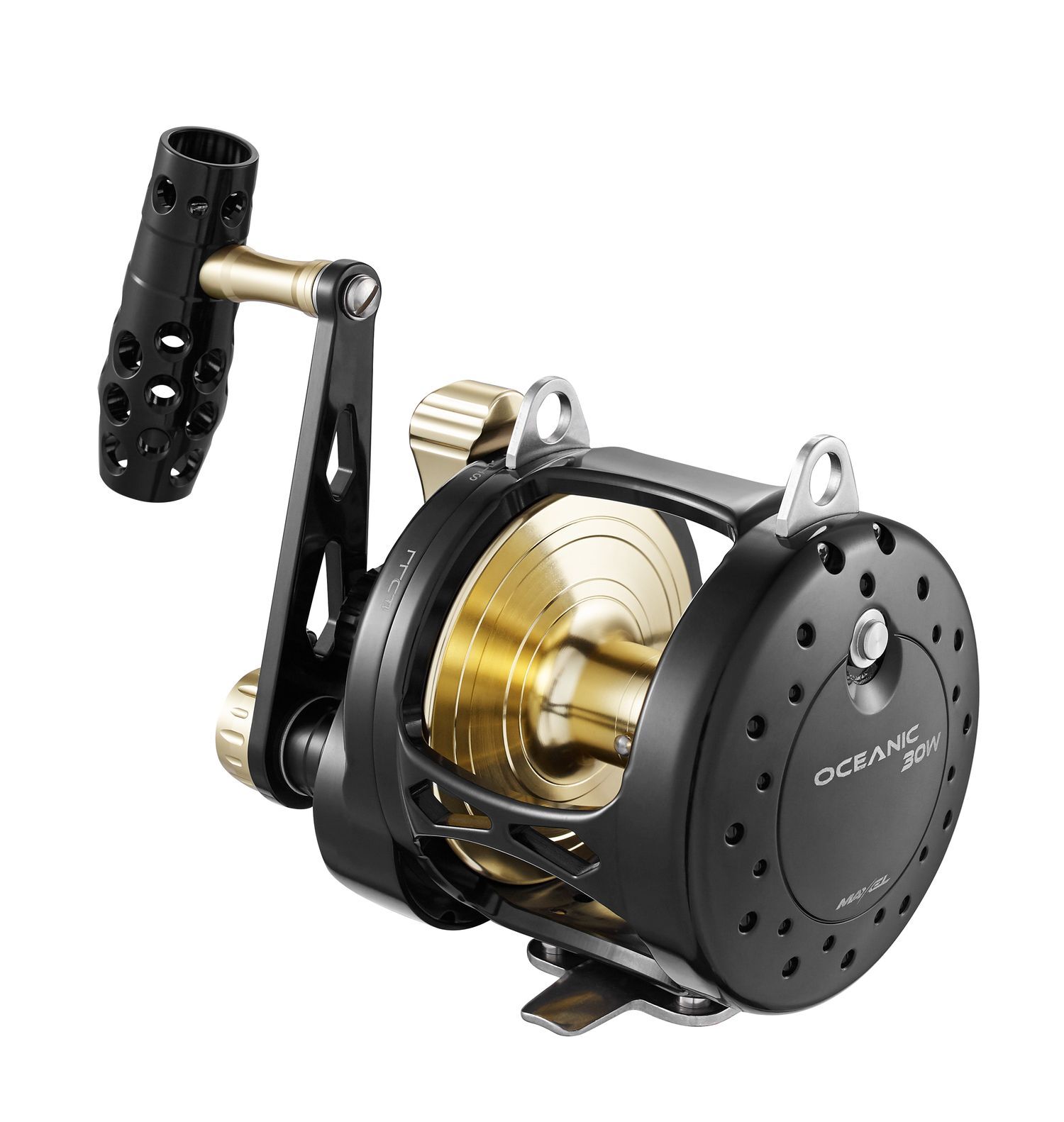

The light and precise OC 12 and OC 20 models have a large surface single disk carbon drag and the OC 30W and OC 50W models boast a dual carbon drags for even greater control.

The materials selected for the OCEANIC series reels are the best available. From super strong, cold forged aluminum alloy spools and side plates to the heat treated, heavy duty, precisely machined stainless steel gear sets, you can be assured of the best in strength, power and long life from any OCEANIC model.

The spools are designed to stand up to either premium monofilament or braided line with plenty of capacity. Nine shielded, precision stainless steel ball bearings resist corrosion and deliver smooth, free operation. Five of these bearings are used to support the spool and drag alone. And, the whole package is heavily anodized to resist corrosion and keep looking great for season after season.

Ergonomically shaped, counterbalanced handle knobs are ready for a sure grip at all times and assure comfort throughout the longest battle. Strong stainless steel harness lugs are standard for more control in any fight. All this and a Five Year Warranty shows how serious MAXEL is about the new OCEANIC, Two Speed Big Game Reels.

Features:

  • 6061-T6 aluminum machined frame with cold forged spool
  • Heavy duty precision stainless steel gearing
  • Carbon drag system featuring Maxel unique drag grease
  • Heavy duty stainless steel bearings
  • Easy ,Quick and Durable two speed shifting
  • Ergonomic Power Handle
  • Anodized for maximum corrosion resistance

Colors:

  • Silver, Black/Gold

Series Variations

MODEL

BEARING

GEAR RATIO

LINE CAPACITY (m)

STRIKE DRAG (kg)

FULL DRAG (kg)

LINE RETRIEVE
PER CRANK (cm)

REEL WEIGHT (g)

HANDLE TOTAL LENGTH (mm)

PRODUCT

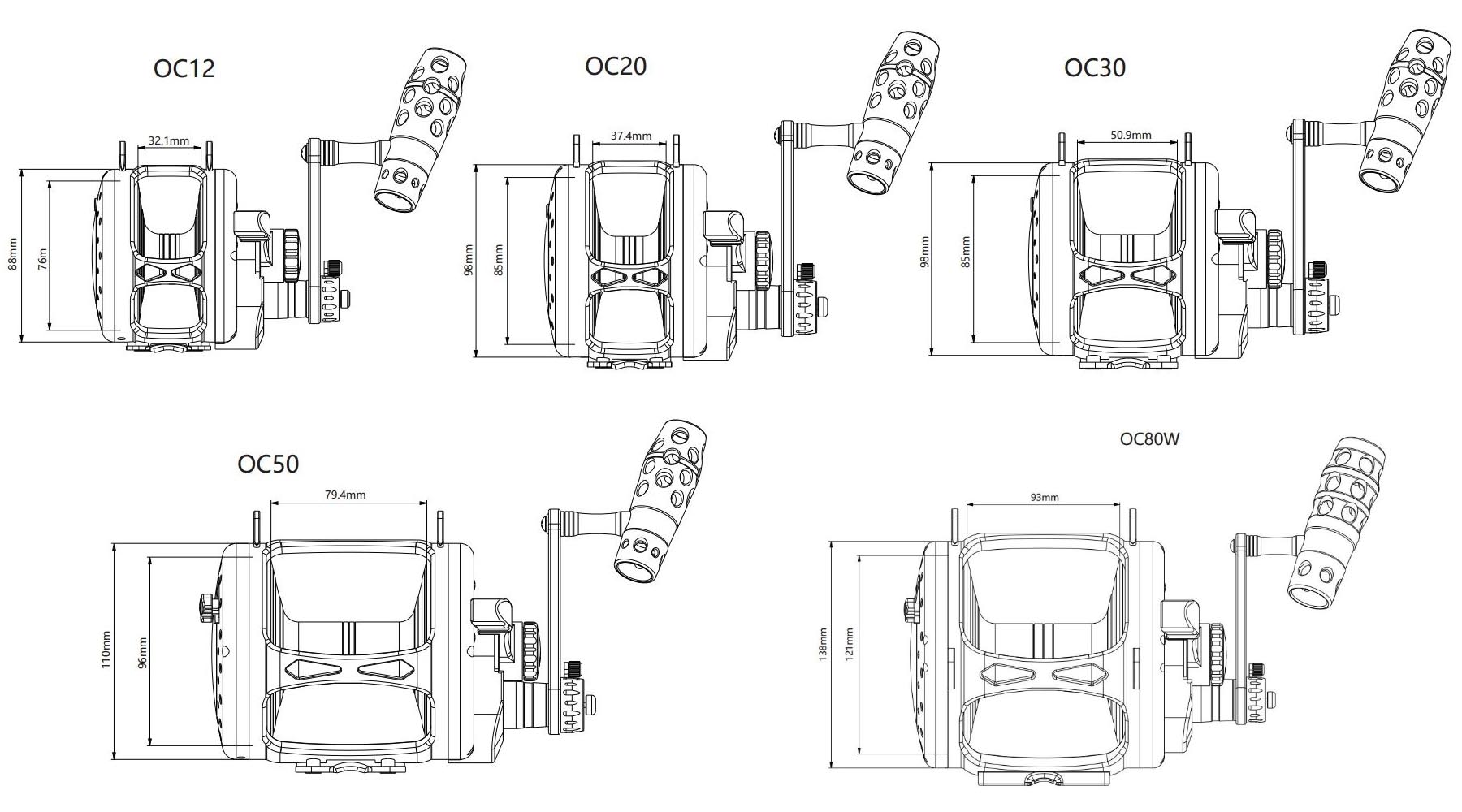

SCHEMATIC

9

4.5:1/2.2:1

PE3/850, PE4/800

10

14

107/52

844

102

9

4.3:1/1.7:1

PE4/1250, PE5/760

12

15

120/59

1100

120

9

4.3:1/1.7:1

PE5/1100, PE6/900

15

20

115/45

1225

120

9

3.6:1/1.3:1

PE8/1500, PE10/1200

30

55

108/39

1759

126
